What Are SEG Frames and How Silicone Edge Graphics Work

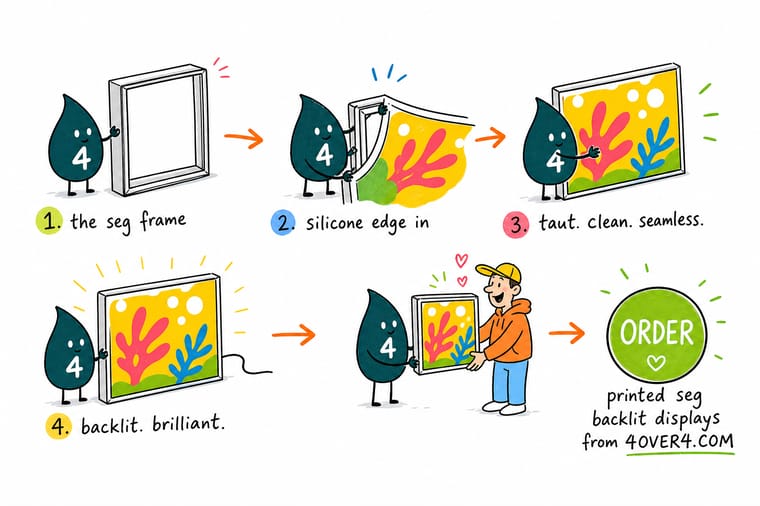

A SEG frame is an extruded aluminum profile with a narrow channel, usually called the kerf or groove, machined along the inside face of the frame. The graphic that goes into it is a polyester fabric panel, printed by dye sublimation, with a flexible silicone bead sewn around its full perimeter. Press the bead into the channel and it stays there under tension.

Nothing else holds the graphic. There are no clips, no eyelets, no double sided tape and no snap rails. Because the fastening lives inside the extrusion, the printed surface runs all the way to the outer lip of the frame, and the viewer sees image where every other display system would show a border. The extrusion itself becomes a thin dark or silver outline, which is why so many installers describe SEG as looking like a mounted screen rather than a sign.

The second half of the definition is just as important: the frame and the graphic are sold as separate lifecycles. The extrusion is a durable fixture that lives on the wall or in the crate for years. The fabric is the part that changes with the campaign. That split is what makes SEG cheaper over time than any rigid panel, and it is a very different economic model from the one behind traditional banners and rigid signs.

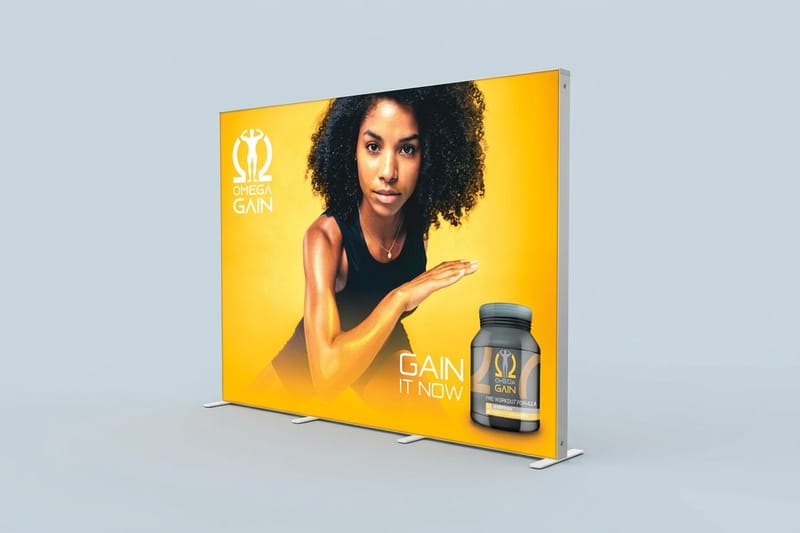

Profile depth is the single spec that shapes everything else. Shallow profiles sit close to the wall and read almost like a canvas, which suits corridors, showrooms and anywhere the graphic should feel built in. Medium profiles add rigidity for wide unsupported spans and give you room for wall standoffs. Deep profiles create an internal cavity, and that cavity is what a lightbox needs.

Mounting method follows from there. Wall SEG uses cleats or brackets hidden behind the extrusion. Freestanding SEG uses feet, a weighted base or a rear brace so the panel resists a knock. Hanging SEG uses rigging points at the top rail and is common over booths and reception desks. Double sided frames carry two grooves, one per face, and take two fabrics printed with the same or different artwork.

Very large graphics are not one piece of aluminum. They are built from multiple extrusion sections joined with internal splices, then skinned with a single fabric or a small set of panels whose seams land on the frame members. This is how SEG scales to full walls without losing the seamless face, and it is the reason wide formats stay shippable in flat boxes.

SEG graphics are printed by dye sublimation. Ink is deposited as a solid dye, then heat turns it to gas and drives it into the polyester fibers, where it sets as part of the material rather than sitting on top of it. The result does not crack when folded, does not peel at the edge, and holds color through repeated handling. If you want the broader context on how this sits next to offset and digital work, the primer on different types of printing lays out the processes side by side.

Weave choice follows the application. Blockout fabrics carry an opaque layer so a double sided frame does not show ghosting from the other face. Standard display fabrics are lighter and used for single sided wall work. Backlit fabrics are engineered for transmission and even light spread. All of them are matte by nature, which is the property that kills glare and makes SEG so much easier to photograph than laminated vinyl.

Handling is genuinely low maintenance. Panels fold into a small box, travel without a tube or a crate, and come out of storage with soft creases that relax under tension within a short time on the frame. When a graphic gets dusty it takes a gentle wash rather than a replacement, which is the same logic that keeps other fabric printed products such as custom printed ribbon looking sharp after handling.

Against a hanging banner, SEG wins on finish and loses on price per square foot at the very first order. A banner ripples, shows its hems and needs grommets or a pole pocket. A SEG panel is flat, borderless and repeatable, and it starts paying that difference back the second time you change the artwork. The tradeoffs are laid out in more detail in the guide to banners versus signs.

Against rigid board, SEG wins on logistics. A large rigid panel needs a crate, corner protection and freight, and it is scrap the moment the message changes. Fabric folds into a box and posts anywhere. Rigid still wins where the graphic has to take physical abuse or live outdoors unprotected, and that is a real category, not a consolation prize.

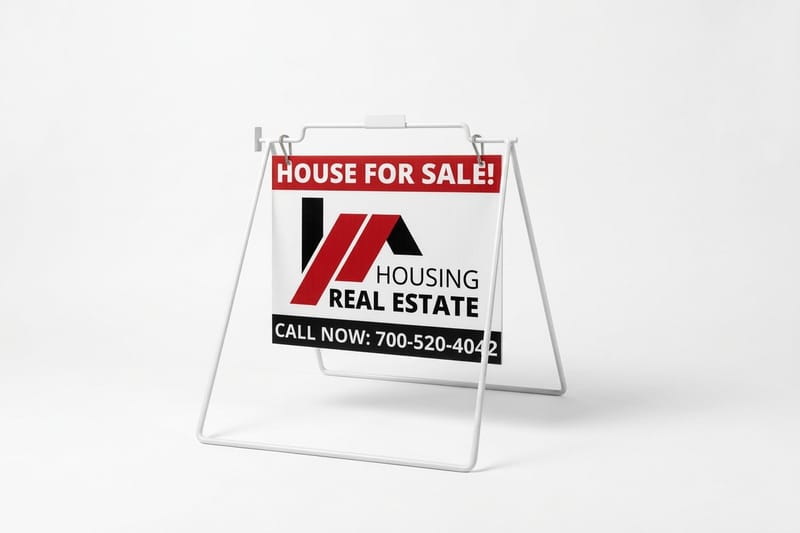

Sidewalk signage is a different job entirely. When you need something you can carry outside at open and bring in at close, a frame like Aluminum A-Frames from $146.07 or the lighter Metal Rod A-Frames from $65.90 does that work for a fraction of a SEG budget. The honest answer is that most businesses run both: A-frames at street level, SEG inside where the finish is on show.
