Wire-O Bound Book Printing That Lies Flat and Stays Open
Wire-O is the bind you choose when the book has to stay open by itself. Here is how the wire goes on, the page counts and margins it needs, and the three jobs where coil or a glued spine beats it.
Wire-O bound book printing punches a row of rectangular holes down the binding edge, hangs a twin loop wire through them, and crimps the wire shut into a cylinder. Every page is a single leaf on that wire, so the pages rotate a full 360 degrees and the book lies dead flat without being held. It takes any page count rather than multiples of four, mixes paper weights and tab dividers freely, and gives up the one thing a glued spine has: a flat surface you can print a title on.
Quick answer
Single leaves on a wire, and a book that stays where you put it
Wire-O binds a book by threading twin loop wire through punched holes instead of folding, stapling or gluing. The pages hang as separate leaves, turn a full circle, and let the book fold back on itself, which is why manuals, cookbooks and calendars use it and why novels do not. Any page count works because nothing is folded into signatures, and mixed stocks, tab dividers and a clear cover drop in without changing the bind. The trade is the spine: there is no flat surface to print a title on, so a shelved book still belongs in a perfect bound format.
How a Wire-O Book Is Punched, Hung and Closed
Wire-O happens entirely after the printing is finished, which is why it can be added to almost any book without changing how the pages are imposed.
One, the pages are printed as single leaves and collated. There are no folded signatures, so page one to page forty stack in order like a ream, cover on top.
Two, the block is trimmed, then punched. A die drives a row of rectangular holes down the binding edge. The hole pitch is either three per inch or two per inch, and the block thickness decides which.
Three, the wire is hung. A length of twin loop wire is cut to the book height and the loops are dropped through the holes while the wire is still open.
Four, a crimping bar closes it. The bar squeezes the open C of the wire into a cylinder. The loops meet, the pages are captive, and the book is done.
The one number that governs the whole sequence is the thickness of the trimmed block. Wire diameter has to run about an eighth of an inch larger than the block, or the pages pinch against the loop and the book stops lying flat. Go too far the other way and the block rattles on an oversized wire and catches on everything. The diagram above plots where the pitch changes and how the diameter follows.
What Lay Flat Actually Buys You, and What It Costs
A lay-flat bind is worth paying for when someone has to work from the page with their hands busy. A line cook following a recipe, a technician holding a torque wrench, a trainee filling in a workbook: none of them can spare a hand to hold a glued spine open, and none of them want the book snapping shut halfway through step four. Pages that rotate a full turn also mean the book takes up half the desk it would otherwise need, because it can be folded back on itself.
The cost is the spine. There is nothing to print on, so the book is invisible the moment it is filed upright, and the title has to live on the front cover alone. Wire loops also travel badly. A twin loop wire that gets crushed in a shipping box or a backpack stays crushed, and a flattened loop drags on every page turn afterward. Plastic coil springs back from the same abuse, which is the honest reason field manuals lean plastic.
There is one more limit worth knowing before you commit. Because the pages are single leaves, an image that crosses the gutter has to survive a punched hole running through the middle of it. Full bleed spreads belong in a saddle stitched booklet, where the fold keeps the two halves aligned, or in a perfect bound book where the glue line at least does not remove paper. Keep photography on single pages in a mechanical bind and it will never bite you.
Wire-O, Plastic Coil, Perfect Binding and Saddle Stitch Side by Side
Four binds cover nearly every book we run. The fastest way to choose is to look at the page count and at whether the book has to be found on a shelf.
| Bind | Page range we run | Opens flat | Printable spine | Starting price |
|---|---|---|---|---|
| Plastic coil | 40 to 300 inside pages, in steps of 2 | Yes, 360 degrees | No | $423.28 per 10, $10.89 each at 500 |
| Twin loop Wire-O | 26 or 38 pages on our calendars | Yes, 360 degrees | No | $812.59 per 25, about $7.03 each at 500 |
| Perfect bound | 40 to 300 pages, in steps of 2 | No, needs holding | Yes, square and flat | $375.05 per 10, about $7.67 each at 500 |

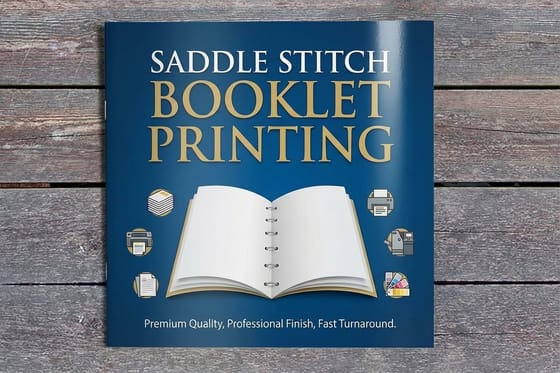

| Saddle stitch | 8 to 60 pages, multiples of 4 only | Close to flat | No, folded crease | $240.55 per 25, $0.24 each at 5,000 |
Read the last column and the first together. Saddle stitching is an order of magnitude cheaper per copy at volume, which is why it stays the default under 60 pages for anything handed out rather than worked from. Mechanical binding is the expensive option here, not the budget one: at ten copies the coil book costs about five dollars more per book than the same page count glued. That surprises people who assume glue is the premium process.
One practical note on stock. A mechanical bind is the only one of the four that will happily mix paper weights in a single book, so tab dividers, a heavier chart section, and a clear polypropylene cover all drop in without changing the bind. Glue and staples want a consistent block. If you are still weighing formats rather than binds, catalogs versus booklets versus perfect bound books lays out the same choice from the other direction.
Three Questions, One Bind, and the Order Screen
Most binding decisions collapse in about thirty seconds if you ask them in the right order. Page count first, then how the book gets used, then budget. Budget only ever breaks a tie, because the wrong bind on the wrong book fails no matter how little it cost.
| What you are printing | Pages | The bind | Order it |
|---|---|---|---|
| Training manual, cookbook, workbook, lab guide | 40 to 300 | Lay flat mechanical bind | Spiral Coil Book |

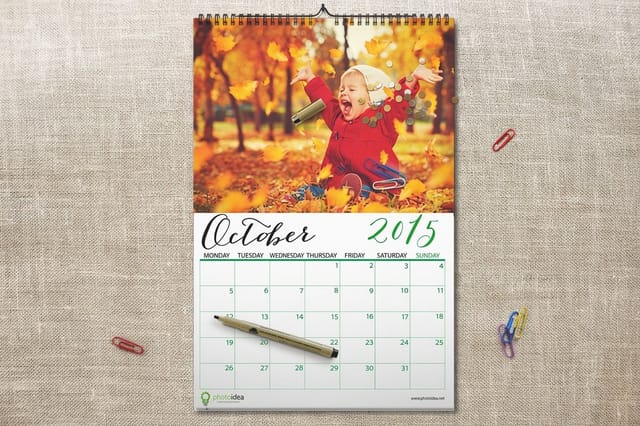

| Wall or desk calendar, 12 or 18 months | 26 or 38 | Twin loop Wire-O | Wire-O Coil Calendars |
| Catalog, yearbook, novel, anything shelved | 40 to 300 | Perfect glue bind | Perfect Bound Book |
| Event program, short catalog, newsletter | 8 to 60 | Saddle stitch | Saddle Stitch Booklet |
| Mixed job with tabs or a heavier insert section | 40 and up | Mechanical bind, mixed stock | Standard Booklets |

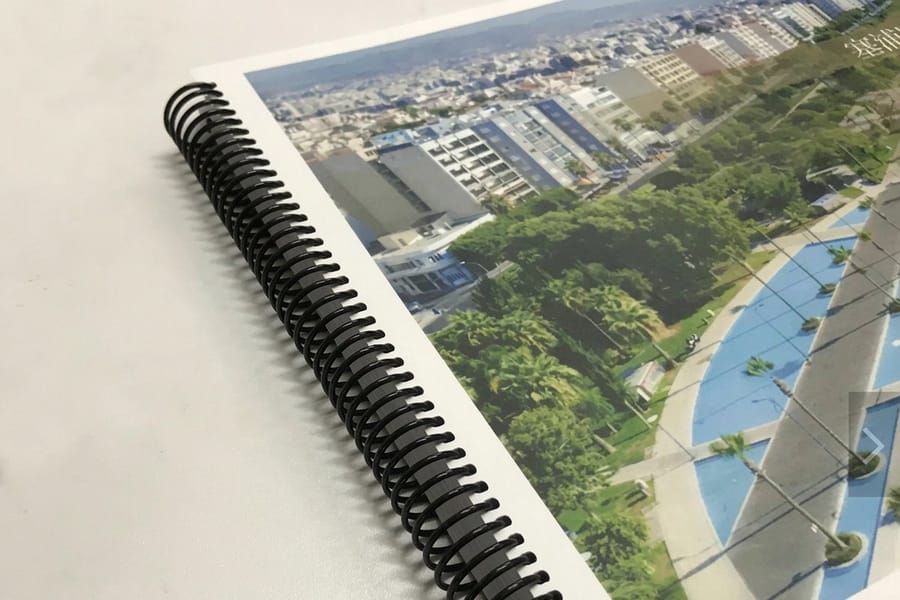

The coil book gives you four sizes, from a 5.5 by 8.5 inch handbook up to a full 8.5 by 11, plus custom sizing to 9 by 11. Coil comes in black or white, bound on the long edge for a portrait book or the short edge for a flip pad, under a 14pt or 80# gloss cover you can velvet or silk laminate. Standard turnaround is 5 business days, with 4, 3, 2 day and next day rush available.
Before you upload, set the file up as single pages rather than reader spreads, keep the binding edge clear, and export at full size. Our walkthrough of how online printing works covers the handoff end to end, sized layouts sit in the blank template library, and the whole bound range lives under booklets and catalogs printing if you want to browse before you configure.

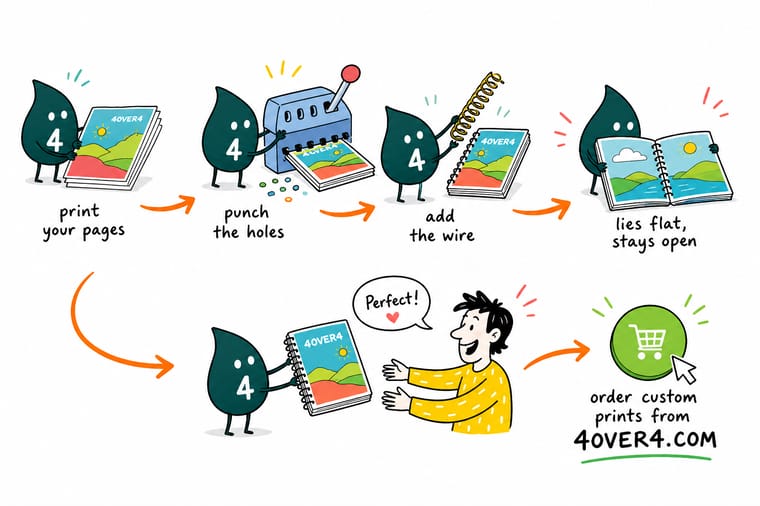

Wally explains Wire-O binding
Punch the edge, hang the wire, crimp it shut
Wally stacks the printed pages as single leaves, trims the block, then punches a row of rectangular holes down one edge. He hangs an open twin loop wire through the holes and squeezes it closed with a crimping bar. Now every page swings a full turn and the book stays open on the bench by itself. He sizes the wire about an eighth of an inch bigger than the page stack, because a wire that is too tight stops the book lying flat. The one thing he cannot do is print a title on the spine, since there is no spine, only wire.
Order a lay-flat coil bound book →Specs and pricing
Bound book options, sizes, and starting prices
Compare the bound formats side by side, with live configuration choices and starting prices straight from the 4OVER4.COM configurator.
Print it
Order a book that stays open on the bench
Explore more
Where to go next
By the numbers
Bound book printing you can count on at 4OVER4
Common Questions
Your Wire-O binding questions, answered
What is Wire-O bound book printing?
Wire-O is a mechanical bind. The printed pages are collated, trimmed, and punched with a row of rectangular holes along one edge, a twin loop wire is hung through the holes, and a crimping bar closes the wire into a cylinder. Because every page is a separate leaf hanging on the wire, the pages rotate a full 360 degrees, the book lies dead flat on a desk, and it folds back on itself. That behaviour is the whole point of the format, and it is why manuals, cookbooks, workbooks and wall calendars pick it over glue or staples.
Does a Wire-O book have to be a multiple of four pages?
No, and that is one of its quiet advantages. Saddle stitching folds sheets inside one another, so each sheet carries four pages and the total has to land on a multiple of four. A mechanical bind punches flat single leaves, so any page count works. Our lay-flat Spiral Coil Book steps in twos, from 40 inside pages up to 300, which means you can end a chapter where the writing ends rather than padding to fill a signature. If you are used to booklet math, the rules behind it are set out in our guide to booklet page counts and creep.
How much margin do I need on the binding edge?
Leave half an inch of clear space on the bound edge and keep anything you actually need to read at least three quarters of an inch in. The punch removes paper, and the closed wire sits proud of the edge, so a page number or a running head placed too close either gets punched through or hides behind the loop. Also remember the book flips, so the binding edge stays on the same physical side for every page rather than alternating left and right the way a folded booklet does. Start from a correctly sized layout in the blank template library and you will not have to reflow the file.
Wire-O or plastic coil, which one should I order?

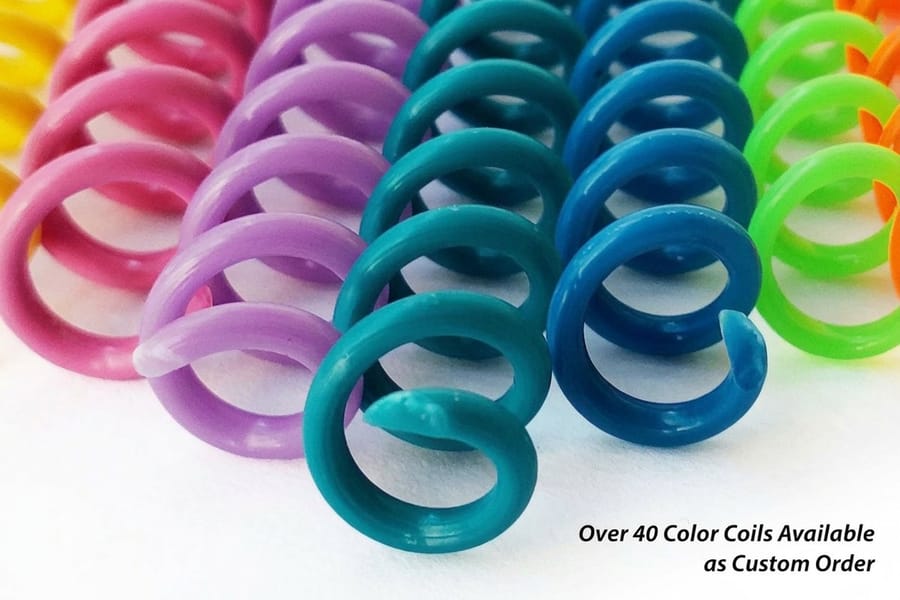

They behave the same on the desk and differ in look and durability. Twin loop wire is squarer, more formal, and holds its shape, but a crushed loop stays crushed. Plastic coil is a continuous spiral that springs back after being squashed in a bag, which is why field manuals and workbooks favour it, and it comes in colours. At 4OVER4.COM the lay-flat book product is plastic coil in black or white, and twin loop Wire-O is what binds our calendars. If the piece will be shipped, carried and reopened daily, coil is the safer choice.
Can you print a title on a Wire-O spine?
No. There is no spine, only wire, so nothing on the bound edge can be printed. That is the one real cost of the format. A perfect bound book glues a flat square spine you can print the title and the year on, so it stays findable when it sits filed upright between other books. A common compromise on long reference sets is perfect binding for the archive copy and a coil or Wire-O bind for the working copy that lives open on a bench.
What does a lay-flat bound book cost?
Our Spiral Coil Book starts at $423.28 for 10 copies, which is $42.33 each, and the per book price falls to $10.89 at a run of 500. A Perfect Bound Book of the same page range starts at $375.05 for 10, about $37.51 each, dropping to roughly $7.67 at 500. Wire-O Coil Calendars start at $812.59 for a set of 25 and slide to about $7.03 each at 500. Standard turnaround on the books is 5 business days, with rush down to next day.
